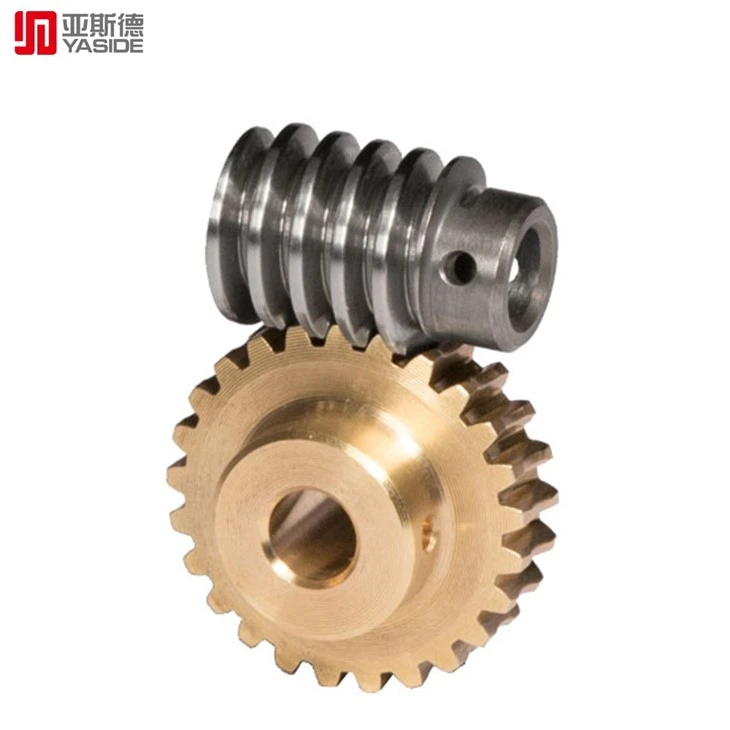

Hardware Gear Cases CNC Machining Spare Parts

What you need to know about gears:

Gear machining has always been one of the most widely valued fields of machining because gears are one of the oldest and most widely used mechanical parts. Gears are not only used in many fields such as automobiles, aerospace, industry, etc., but also have many advantages. Processing technologies to achieve gear size, shape and surface smoothness are also continuously improved and developed, including various technologies such as casting, forging, extrusion, powder metallurgy, blanking and gear milling. These technologies can not only achieve high precision and high quality in gear processing, but also provide strong support for the development of various industries.

Gears play an important role in mechanical equipment:

Rotating speed

Gear cutting is an indispensable and important link in the speed adjustment of mechanical systems. In engine applications, gears play an outstanding role in fine-tuning the engine speed through special gear ratios. Gears with different transmission ratios, such as the 1:2 transmission ratio of an electric motor running at 1,400 rpm, can enable precise control of the speed. This function is also indispensable in practical applications.

Torque change

Torque is critical to promoting acceleration and is a reflection of the engine's rotational force. The gear blank plays a vital role in adjusting torque output, and here the influence of gear diameter is also essential. The larger the diameter of the gear, the higher the level of torque produced and the greater the effect on acceleration. At the same time, selecting the appropriate gear blank diameter can accurately adjust the engine's torque characteristics, thereby improving acceleration capabilities.

Power

The basic function of gears is to transmit power without slipping and to efficiently connect interconnected components. This is a very common use case in lathe equipment. In order to achieve reliable movement of the chuck, the motor is not directly connected to the main shaft, but the gap between the motor and the shaft is bridged through gears to ensure sufficient and reliable power transmission. This simple and effective design provides a stable foundation for the efficient operation of various mechanical equipment.

How to CNC Machining Gears?

Gear processing requires highly precise manufacturing and forming technology. As an indispensable part of mechanical transmission, gears realize the continuous flow of mechanical power with their rotation characteristics. The process of gear cutting involves fine engraving on a spherical blank to create patterns decorated with unique basic features. Gear processing is carried out using traditional machining, powder metallurgy, casting and stamping methods. The most common and most accurate methods include gear milling, grinding, broaching and gear hobbing, which ensures the creation of complex And clear gear outline. With the advancement of technology, the materials used in gear manufacturing are becoming increasingly diversified, including metal, plastic, and even wood. Manufacturing with different materials has become one of the ways for manufacturers to surpass traditional gear manufacturing processes. However, it is worth noting that sometimes post-processing is required for a better finished product.

Material selection for CNC machining gears

Various industries use different types of materials in the production of gears, from durable steel used to make large industrial gears to lightweight plastics used in the production of small gears for toys. The choice of materials is very wide. However, of all materials, some are used more frequently in gear cutting processes. These preferred materials are favored for their good properties:

·Cast Iron

·Steel

·Bronze

1. What are the advantages of CNC machining gears?

1) CNC machining can process complex tooth shapes to improve the precision and accuracy of machining.

2) Able to quickly complete a large number of gear production to improve production efficiency.

3) Since CNC machining is a digital process, it effectively reduces the impact of human factors on machining accuracy and improves the quality and stability of gears.

2. What issues need to be paid attention to when processing gears?

It is necessary to determine the gear module, normal tooth width, number of teeth, tooth pitch, helix angle and other parameters to ensure that the size of the gear meets the requirements. The gear processing technology, cutting tools, fixtures and other equipment must be reasonably selected to ensure processing quality.

3. What is the production process of CNC machining gears?

The first is the design of the gear, and the corresponding CAD drawings are designed according to the size and requirements of the gear. Then comes the programming of CAM data, converting CAD drawings into CNC control programs. Afterwards, the machine tool equipment and equipment parameters are adjusted, materials and tools are prepared, and gear processing begins. After the processing is completed, the quality inspection and trimming of the gears are carried out.

4. Are CNC machined gears widely used?

Yes, CNC machined gears have a wide range of applications. Since gears are widely used in mechanical equipment, the market demand for CNC machining gears is very large. Not only that, CNC machined gears are also widely used in automobiles, aerospace, military equipment, heavy machinery and other fields. With the deepening of industrial digital transformation in recent years, the market prospects for CNC machining gears have become broader.
